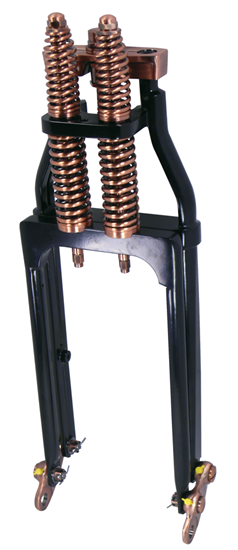

GENERATION III BLACK AND COPPER SPRINGER - 18"

Weight: 48.88

• Re-engineered for greater strength and durability
• one inch front rails on all lengths
• Fully assembled with a forged in-line top bracket without a built-in rake
• The standard length springer (24" measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end
• 1" O.D. steering stem designed for Timken type bearings
• Both rear legs are threaded for right or left brakes
• Forged rockers for superior strength
• Rear legs are 1 piece from the rocker to the top tree
• The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
• Measures 9 1/4" between rockers
• Riser mounts are on 4 3/4" centers and threaded 1/2-20

HARDBODY

Black & copper powder coat finish
18" lenght, -6" standard
